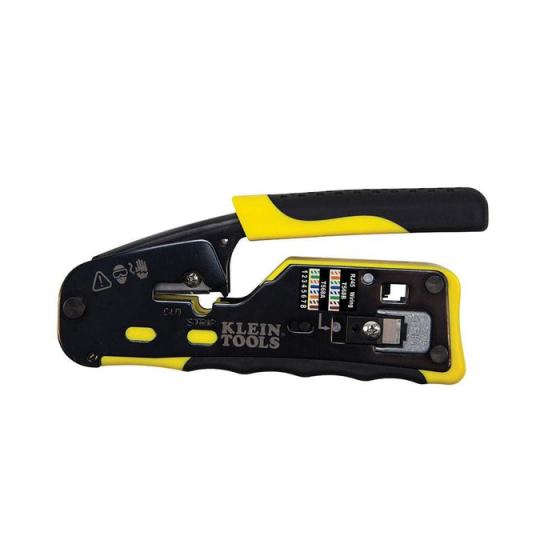

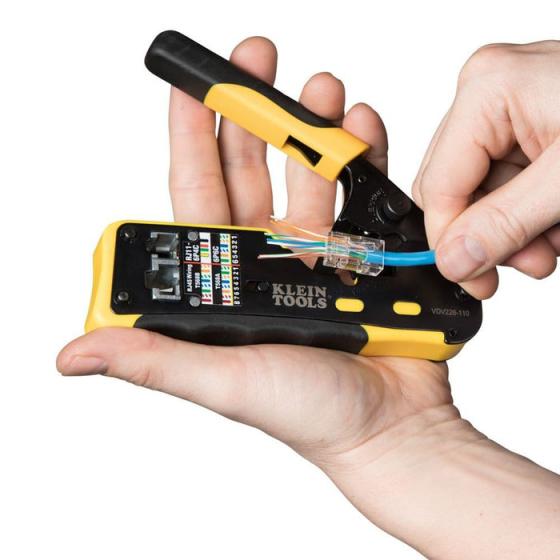

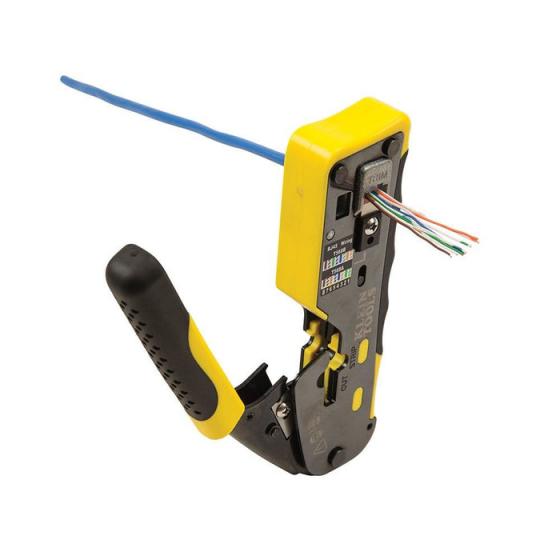

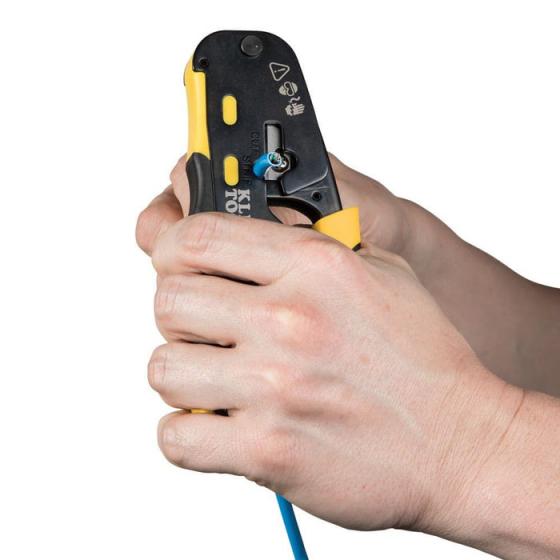

Klein Hand Cutters | Hand Tools A-Vdv226-110 Pass-Thru Rj45 Data Ratcheting Cable Crimper Stripper & Cutter

Description

Features– Modular crimp-connector installation tool for voice and data applications with Pass-Thru RJ45 connector plug Wire stripper, crimper and cutter all-in-one tool for paired-conductor data cables Trims flush to the end face of the connector to eliminate unintended contact between conductors Crimps and trims Klein Tools RJ45 Pass-Thru Connectors Crimps 4, 6 and 8 position modular connectors (RJ11/RJ12 standard and RJ45 Klein Tools Pass-Thru) Full-cycle ratchet mechanism ensures complete connector termination On-tool wiring guide helps minimise wiring errors Cable parameters: 28-22 AWG flat or round; solid or stranded telephone and data Rubber grip for added comfort Ratcheting locking mechanism Use with Klein Tools Pass-Thru Connectors Not for use with standard (non Pass-Thru) connectors Replacement blade set available (VDV999-076) Specifications: Type: Crimper Application: Cable Connection Material: Steel with Black Oxide Handle Colour: Yellow/Black Cuts and Strips: Paired Conductor Data Cables Cable type: CAT3, CAT5e, CAT6/6A Connector type: RJ45 Klein Tools Pass-Thru and RJ11, RJ12 Standard Position/Pair/Conductors: 4-position, 1-pair/2-conductor, 4-position, 2-pair/4-conductor 6-position, 2-pair/4-conductor, 6-position, 3-pair/6-conductor, 8-position, 4-pair/8-conductor Overall Length: 6.094” (15.5 cm) Weight: 14.4 oz (408 g) UPC: 092644690945
